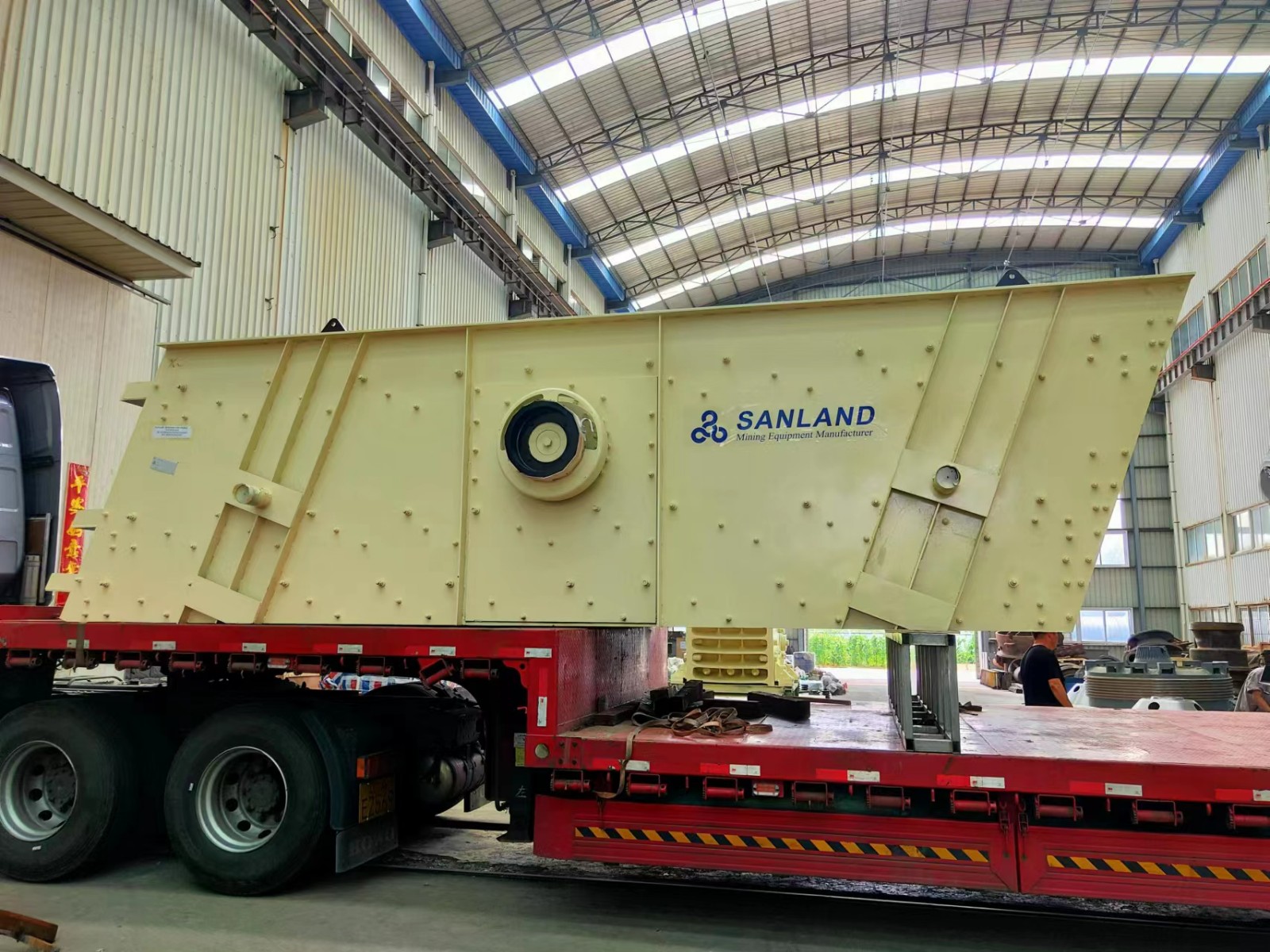

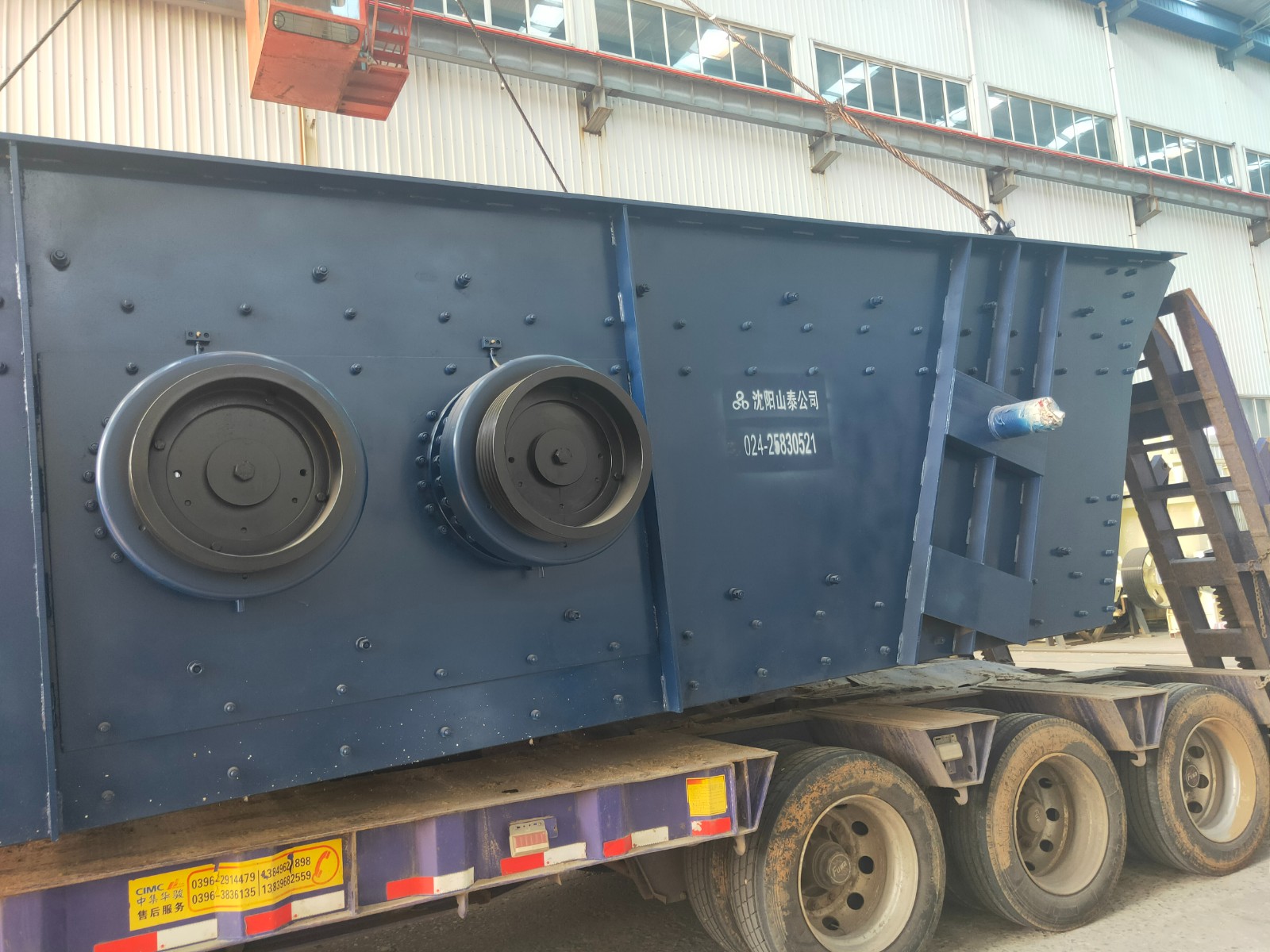

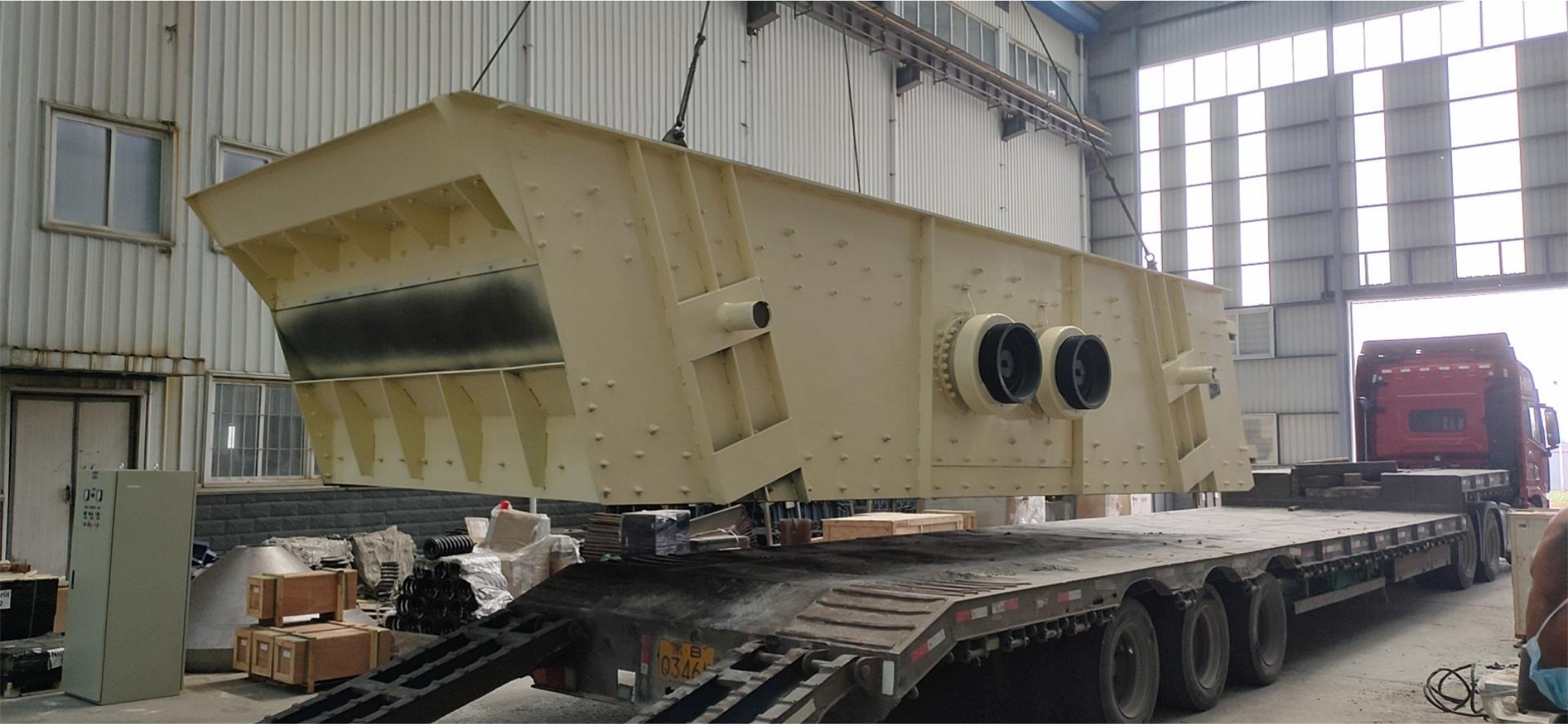

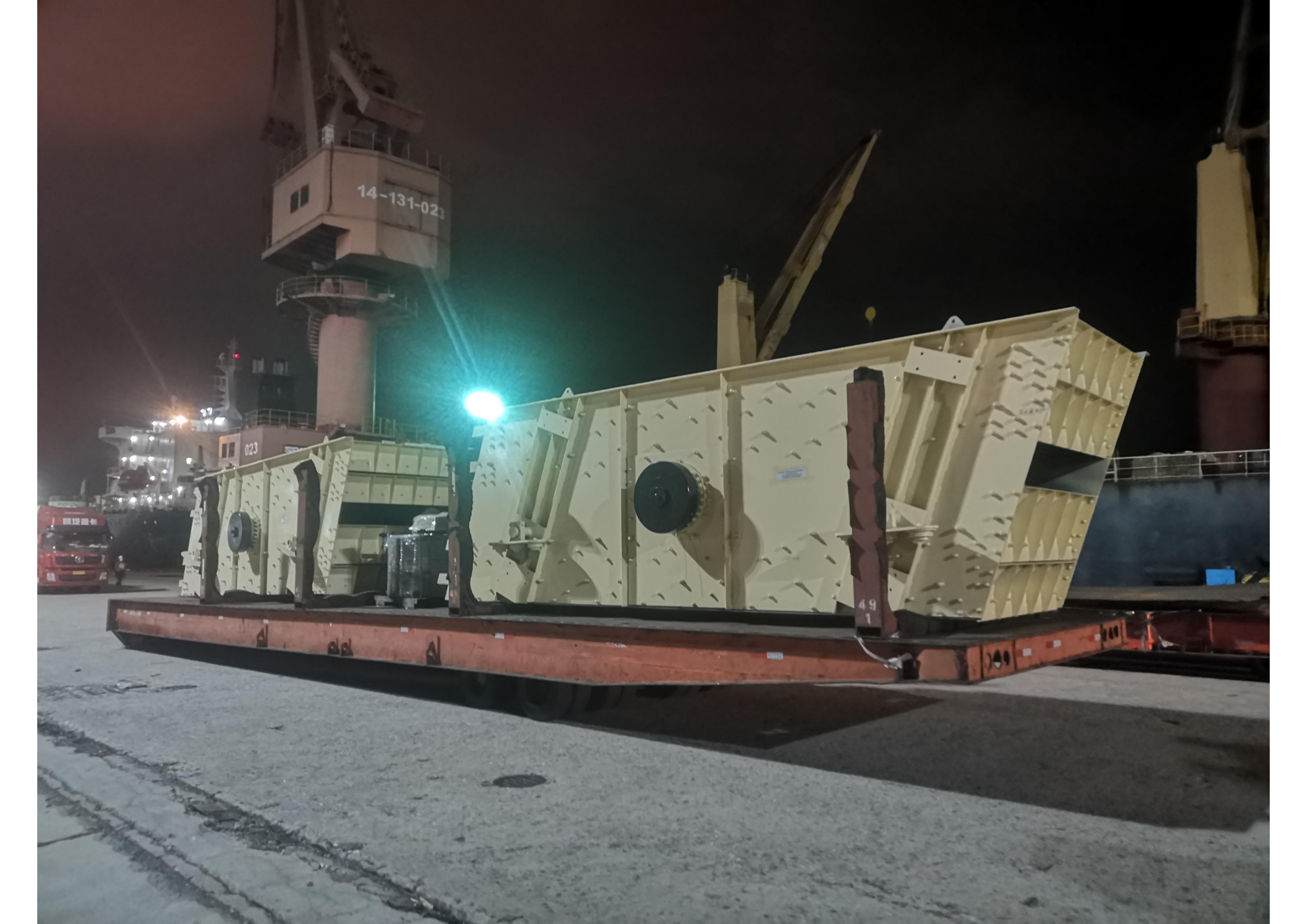

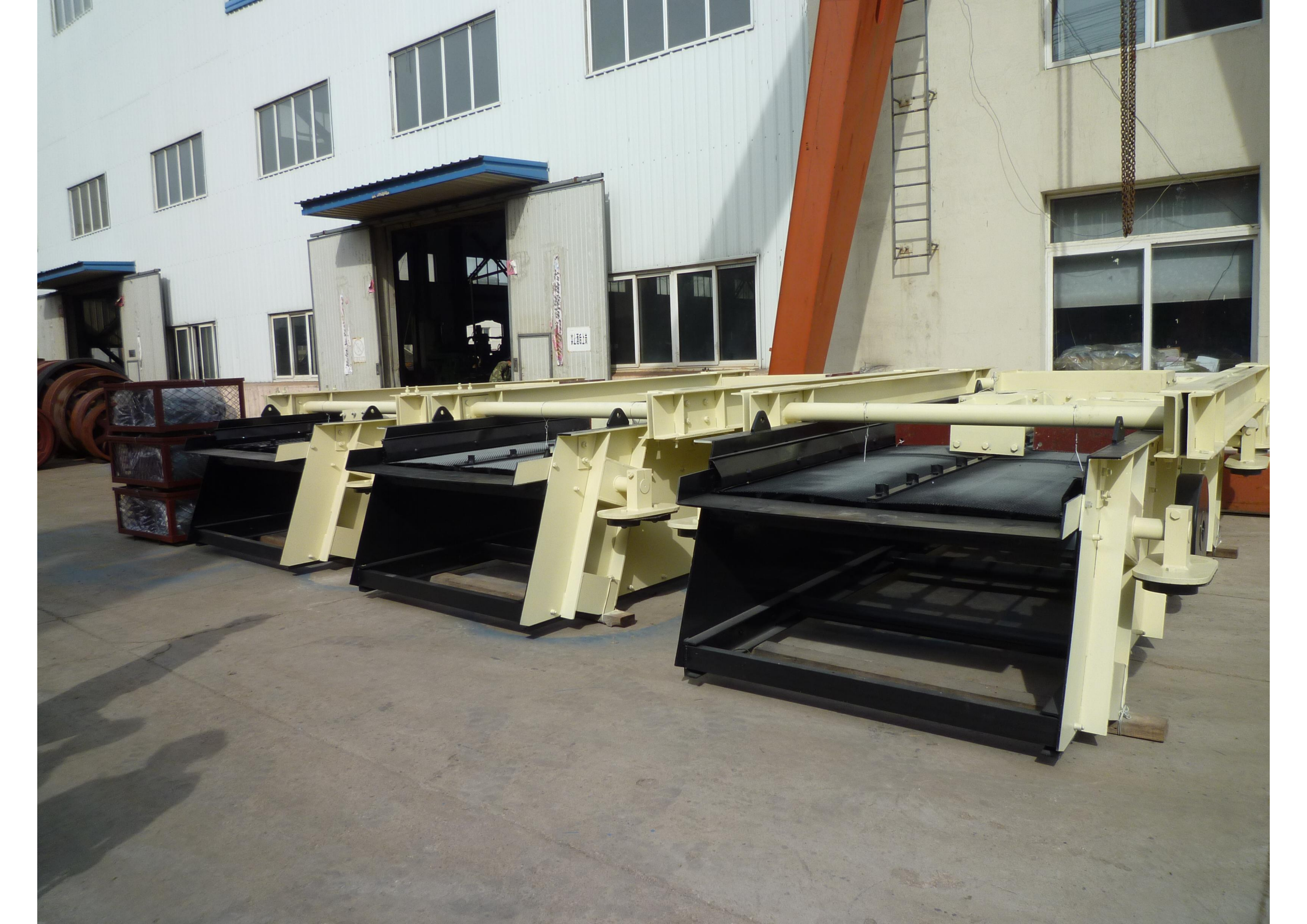

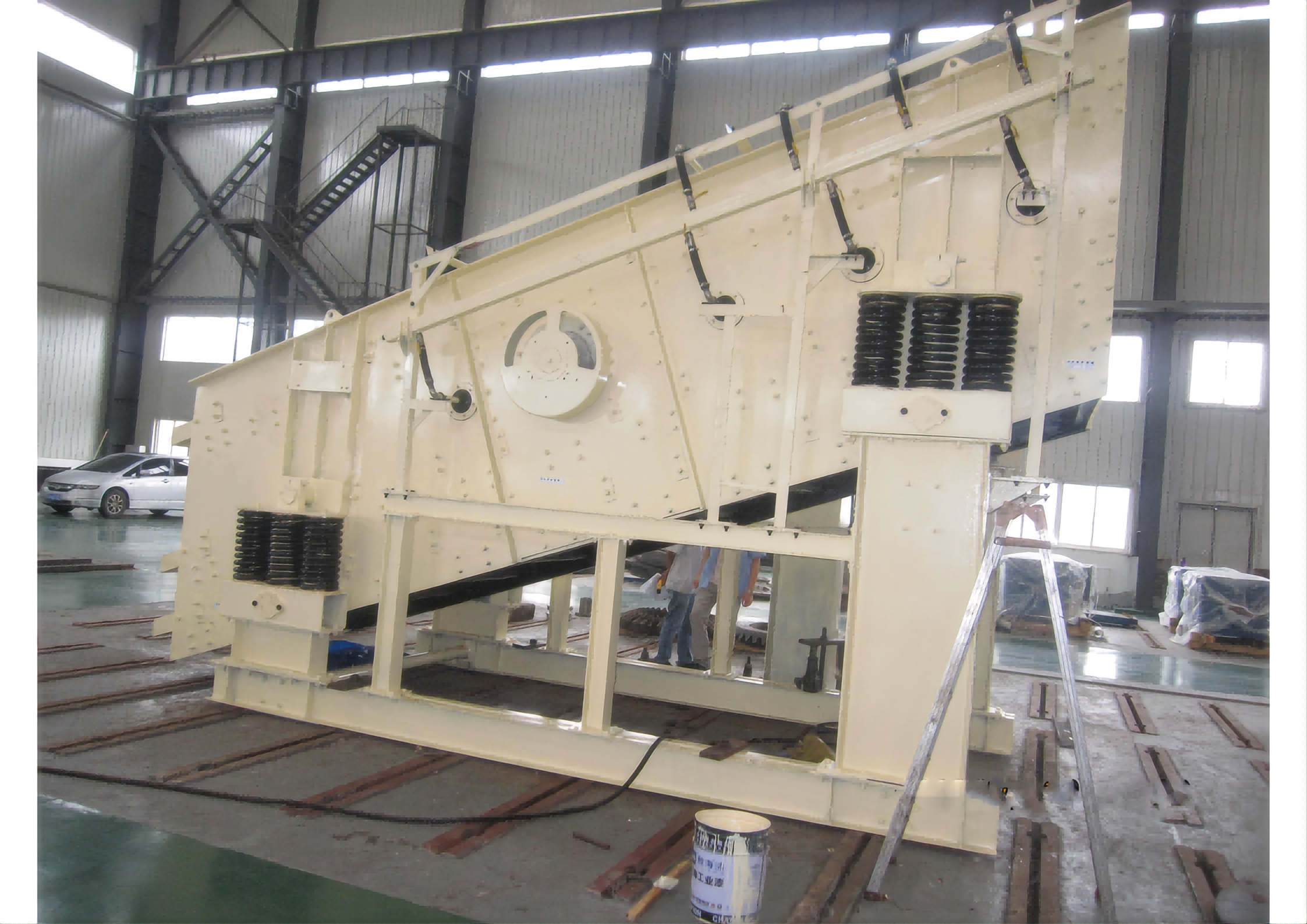

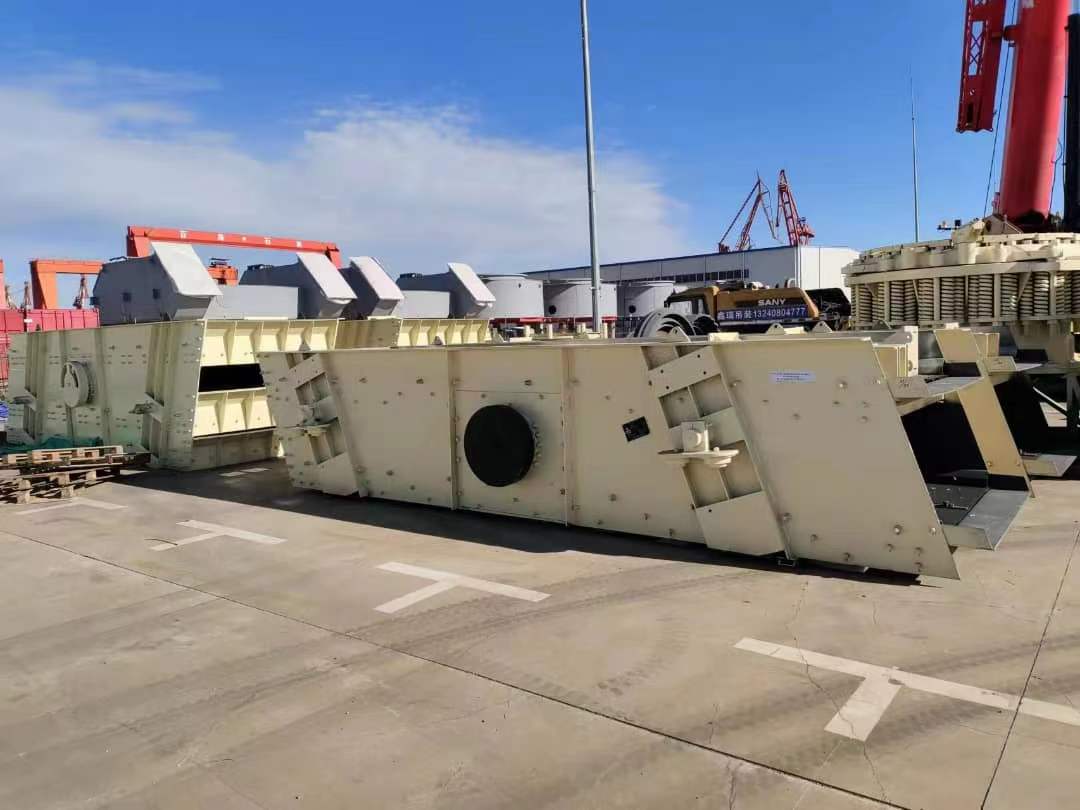

Vibrate Screen Series

Vibrating screen is a filtering mechanical separation equipment used for mud solid phase treatment, consisting of a screen and a vibrator. Generally, those below 50 mesh are coarse screens, and those above 80 mesh are fine screens. The vibrator is an eccentric wheel that rotates under the drive of the motor to vibrate the screen frame. Due to the vibration of the screen frame, when the mud flows to the screen surface, the coarser solid particles stay on the screen surface and are discharged from one end along the slope, and the finer solid particles and the mud liquid flow through the screen holes to the mud pool.

Performance characteristics

性能特点.jpg All the connection points of sieve bed are connected with high strength bolts of steel structure to avoid the welded stress. The unique design of manganese steel screen tension installation makes it easier for replacement the sieve mesh.

性能特点.jpg The vibrator adopts tube or seat block eccentric structure, both adopts the lubrication system.

性能特点.jpg The frame adopts a fully assembled structure and is convenient for transportation and installation. The frame can be customized according to demands.

性能特点.jpg Imported bearings such as SKF, FAG and NSK are used to prolong the service life.
